1995 Gulfstream G-IVSP
Specification
Airframe
5.510 TSN – 3.370 CSN
APU
Honeywell GTCP36-100 s/n P-646 – 4.011 TSN
Engine Power
Rolls-Royce Tay 611-8
LH: s/n 16601
1 TSML – 5.461 TSN- 2 CSML – 3.352 CSN
RH: s/n 16604
1 TSML – 5.461 TSN – 2 CSML – 3.352 CSN
Overhaul due 2036, RRCC eligible

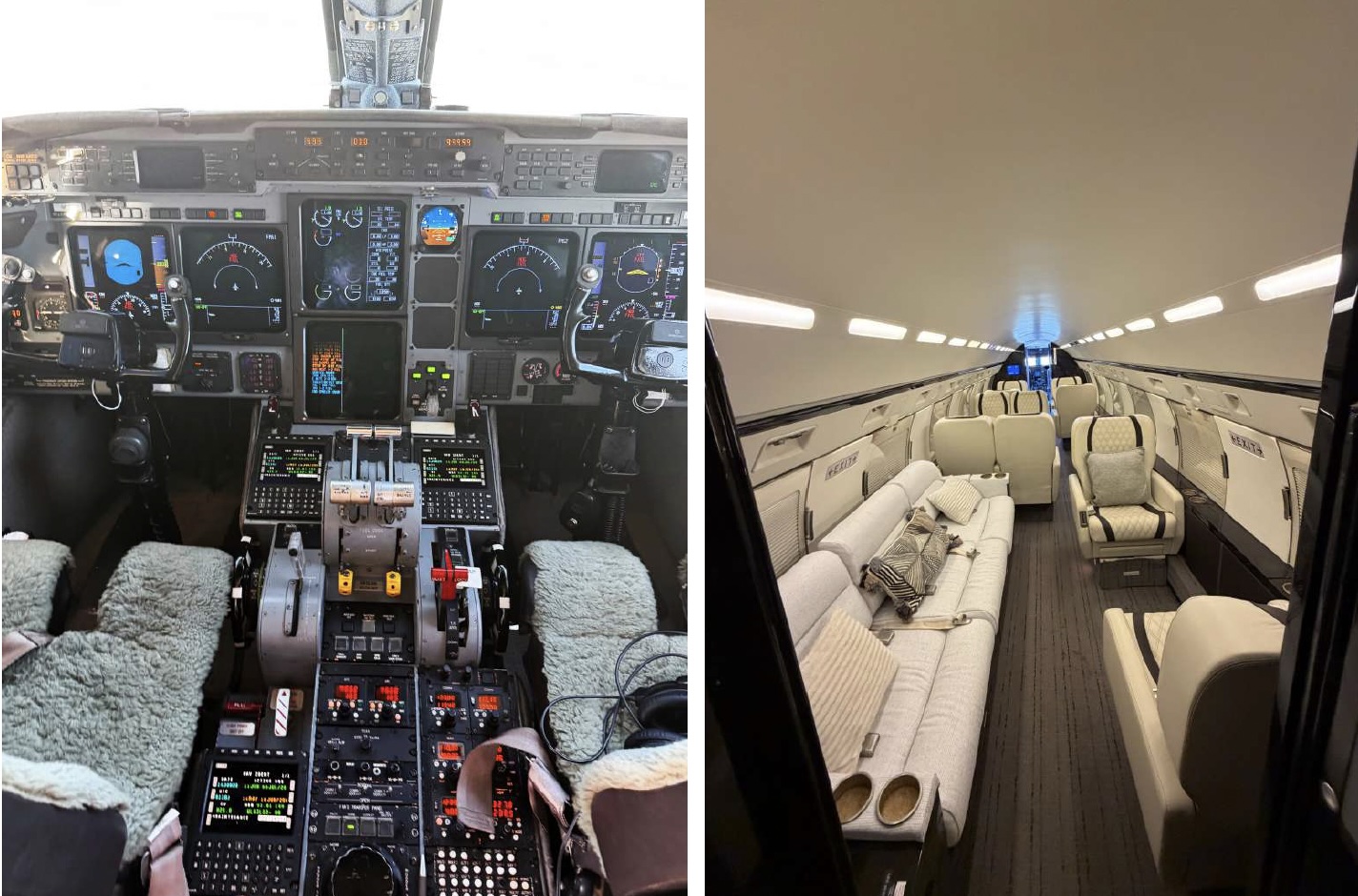

Avionics
EFIS – 6 tube Honeywell SPZ-8400
Autopilot Honeywell SPZ-8400
NAV Dual Collins VIR-432
ADF Dual Collins ADF-462
DME Dual Collins DME-442
Triple Honeywell NZ-8000 FMS System, touchscreen
Honeywell Primus 880 Weather Radar Upgrade with windshear
Dual Fail-Operational Automatic Flight Control System with Honeywell Flight Guidance Panel
Dual Autothrottle
Dual Honeywell Display Controllers
Dual Collins RADALT RT-300
SATCOM Aircell Access II Iridium
VHF COM Triple Collins VHF 422
HF COM Dual Rockwell Collins HF Comms with SELCAL
Honeywell 950 USB Data Loader
Honeywell TCAS Traffic Collision Avoidance System (TCAS-II) with Change 7.1 Software
Honeywell MK V Enhanced Ground Proximity Warning System (EGPWS) with Windshear Detection
ARINC datalink
Dual Honeywell DMEs Dual Honeywell (MODE S) ATC Txpdrs w/ Adv. Surveillance Capabilities (ADS-B out compliant)
Honeywell 12-Channel GPS Sensor
Honeywell Lasertrak
Digital Flight Data Recorder, L3 F1000
Cockpit Voice Recorder Fairchild 100A
GogoAir
Additional equipment
– ADS-B Out compliant
– Honeywell LaserRev IV upgrade
– RVSM certified
– Garmin GI 275 standby instrument upgrade
– Triple Honeywell NZ-2000 touch screen FMS
– Gogo ATC 5000
– GTCP36-100 APU
– ARINC Datalink
– HAAP eligible; RRCC eligible at $345.000 buy-in
– both engines fresh midlife inspection by Lufthansa Technik Jun 2026
Interior
Interior refurbishment in 2018, int 9/10
– Aft Galley
– Aft Lavatory
– Front Crew Lavatory
– 13 Passenger Configuration

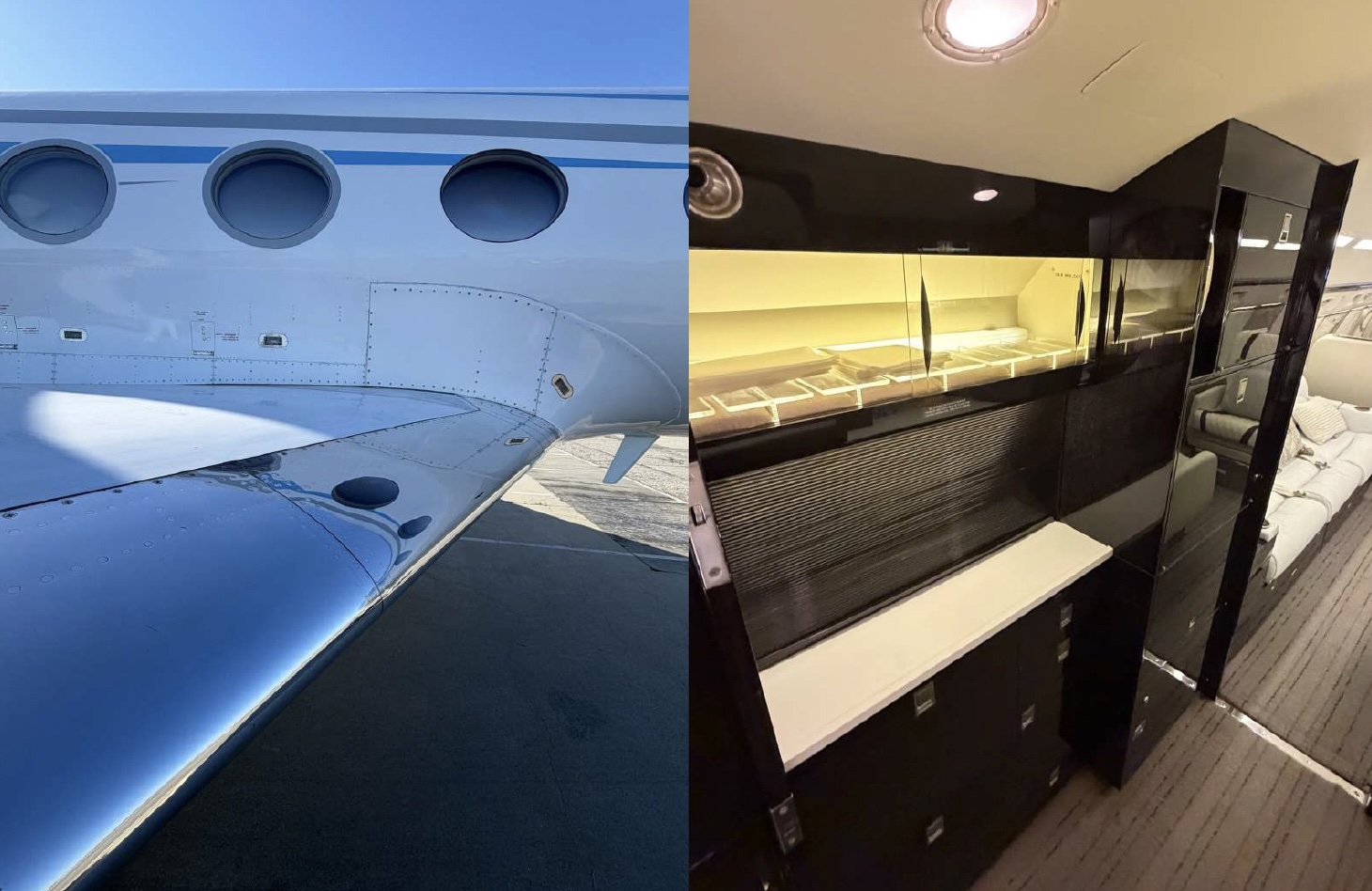

Exterior
New paint 2025 – ext 9/10;
